SDD1036-Fast Shipping

Description

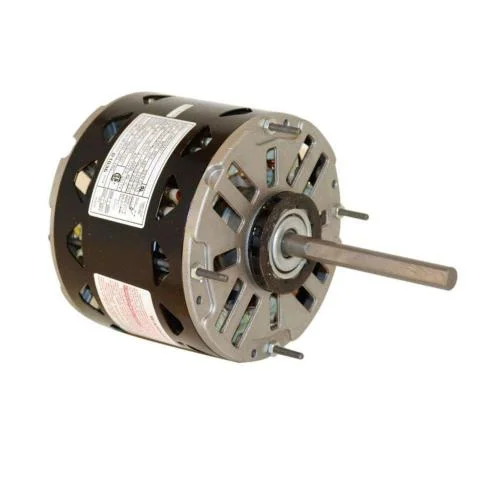

Supplying Demand SDD1036 D1036 HVAC Direct Drive Blower Motor 208-230V 1075 RPM 1/3 HP Phase: Single | Motor Design: Permanent Split Capacitor | HP: 1/3 | RPM: 1,075 | Number of Speeds: 3 | Voltage: 208-230V AC | Full Load Amps: 2.1 A | Frame: 48 | Usable @ 208V: Yes | Usable @ 200V: No | Motor Thermal Protection: Auto | Hz: 60 Hz | Ins. Class: B | Motor Shaft Rotation: CW/CCW | Max. Ambient Temperature: 40 °C | Lead Length: 26 in | Motor Enclosure Design: Open Air-Over | Motor Mounting Type: Ring | Motor Mounting Position: Horizontal | Number of Shafts: 1 | Motor Frame Material: Steel | Shaft Diameter: 1/2 in | Shaft Length: 4-1/2 in | Motor Bearings: Sleeve | Motor Shaft Design: Flat | Overall Length: 9-3/8 in | Length Less Shaft: 5-3/8 in | Mounting Holes: (4) #8-32 | Body Diameter: 5-5/8 in | Bolt Circle Diameter: 5-1/8 in | Stud Size: #8-32 | Ring to Ring Center: 4-15/16 in | Resilient Ring Diameter: 2-1/4 in | Capacitor Required: 2MDV4
