Description

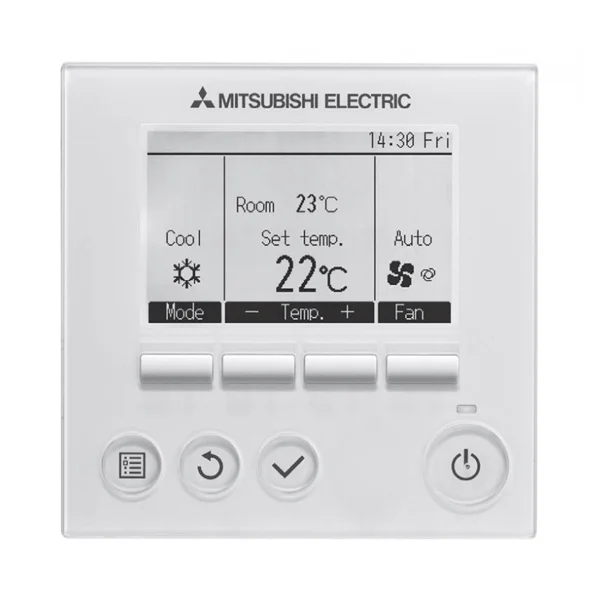

The Mitsubishi PAR-43MAAUB Wired Remote Control for Mitsubishi P-Series installations. This is the ideal remote controller in pursuit of easy operation, convenience, and energy saving.
User functions:
- On-Off
- Operation modes cool, heat, dry, fan
- Set temperature
- Fan speed setting
- Airflow direction
Specifications:
- Set P-Series twinning function
- Addressing – No addressing required
- Static pressure setting – model dependent
- Supports both Fahrenheit and Celsius
- Special Function Rotation-Backup – Lead-Lag for P-Series
- Controls group operation for up to 16 indoor units in a single group
- Fan speed setting for use with supplemental heating function – model dependent
- Features selectable multi lingual LCD – English, Spanish, and French
- Room Temperature – Displays room temperature sensed either at the indoor unit – default or at the remote controller
- Set Temperature Range Limit – From the back lit MA Controller, the allowable set temperature range can be reduced for cool and heat modes
- Function Lock Out – Prohibits all functions or all functions except On-Off from the back lit MA controller
- Wiring – connects using two-wire, stranded, non-polar control wire to indoor unit connection terminal or control adapter – MAC-333IF for M-Series requires crossover wiring for indoor unit grouping
Timer Operation:
- Weekly Timer – On-Off Temperature setting up to 8 times per day of the week in 1 minute increments
- Simple Timer – On-Off time can be set once within 72 hour period in 1 hour increments
- Auto off Timer – Turns indoor unit Off based on countdown time up to 4-hours in 30-minute increments
