Description

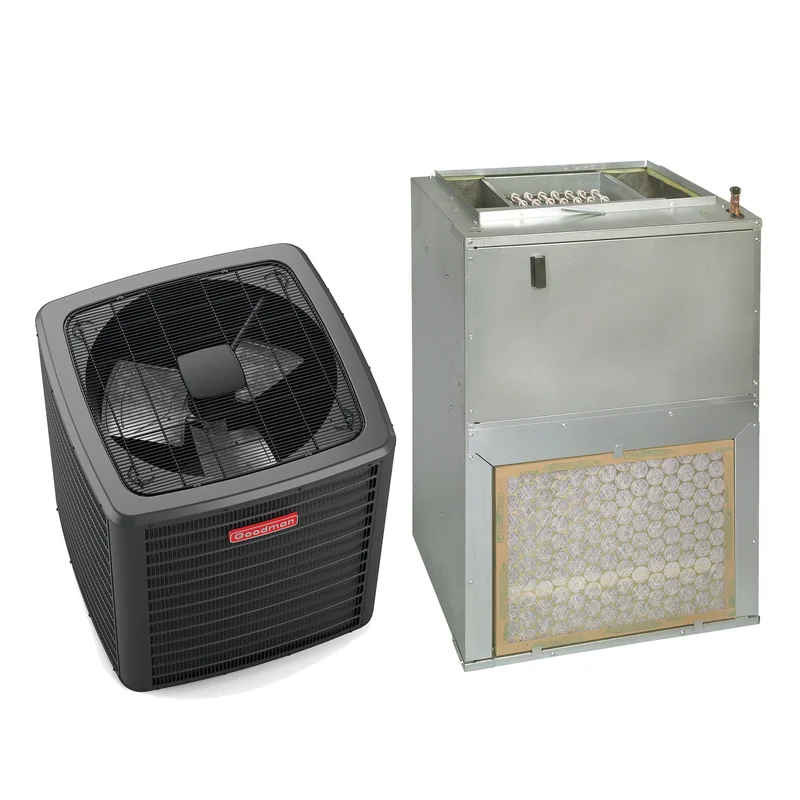

The Goodman GLZS4B Heat Pump will provide you with reliable cooling and heating at money-saving energy efficiency levels as compared to lower SEER heat pump units. This unit is only compatible with R-32 equipment.
Standard Features:
- Energy-efficient compressor/li>
- Enhanced aluminum fin coil with 5 mm diameter copper tubes in 1.5- to 3.5-ton
- SmartShift technology to ensure quiet reliable defrost
- Factory-installed bi-flow liquid-line filter drier
- Factory-installed suction-line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high-capacity muffler
- High- and low-pressure switches
- Service valves with sweat connections and easy access to gauge ports
- Single-speed PSC condenser fan motor
- Fully charged for 15 ft of tubing length
- Contactor with lug connection
- Ground lug connection
- AHRI Certified; ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds
The Goodman AWST Air Handler (front-return) is designed to be vertically wall or stud mounted. This unit features a check flowrater and direct drive, multi-speed motor. The AWST is housed in a fully insulated, galvanized-steel cabinet.
Standard Features:
- AWST Models: Equipped with a fully adjustable TXV
- Designed for use with R-32 Refrigerant
- Direct-drive, multi-speed motors allows air volume variation for heating/cooling
- Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
- Aluminum tubing coils on all models
- Factory-installed pull-type disconnect
- Factory installed R-32 sensor designed for the lifespan of the coil.
- Thermoplastic drain pan with bottom primary and secondary drain connections
- Built-in filter rack (filter included)
- Large chassis (2.5- and 3-ton units)front return only
- Small chassis (1.5- and 2-ton units)front or bottom return
- Wall-hanging bracket provided
- AHRI Certified; ETL Listed
